Warshadda Kubadda ee Planetary-ka ah ee qaboojinta hawada
Codsiyada
Mashiinka kubbadda ee loo yaqaan 'Cryogenic planetary ball minerary' waxaa inta badan lagu dabaqaa shiidi aad u fiican iyadoo heerkul hooseeya uu ka jiro agabku. Marka la barbar dhigo duritaanka macmalka ah ee qaboojinta nitrogen dareere ah, mashiinka kubbadda ee hawada qabow ee hawada ku shaqeeya ayaa aad u fudud oo ku habboon in la shaqeeyo, sidoo kale waa la keydiyaa kharash ahaan, waxaana la isticmaalaa tamar yar.
Video
Guudmarka

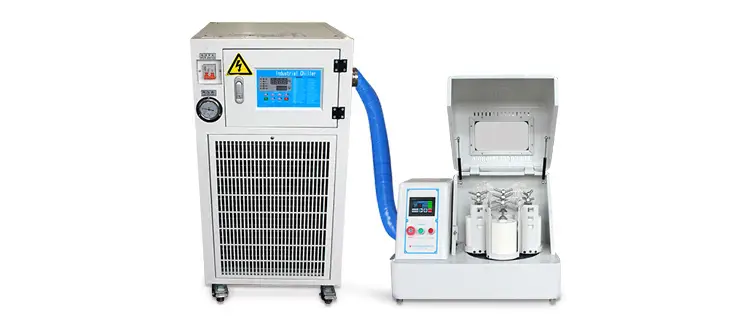

Mashiinka kubbadda ee meeraha ee Cryogenic waa isku-darka qalabka warshadda meeraha iyo qalabka qaboojiyaha. Inta badan walxaha waxaa lagu kululayn doonaa inta lagu jiro shiididda xawaaraha sare leh sababtoo ah is jiidjiid ama falcelinta kuleylka dibadda, taas oo horseedi karta isbeddelo ku yimaada sifooyinka jireed iyo kiimikada ee walxaha waxayna soo saartaa saameyn shiidid taban. Mashiinka kubbadda meeraha ee heerkulka hooseeya waxaa inta badan loo isticmaalaa habka shiididda walxaha kaas oo u baahan xakamaynta heerkulka adag.
Working Mabda'a
Mashiinka kubbadda ee meeraha ee Cryogenic wuxuu leeyahay afar haamood oo kubbadda lagu shiidayo oo lagu rakibay hal miis oo wareeg ah. Marka miiska wareeggu wareego, dhidibka taangiga wuxuu sameeyaa dhaqdhaqaaqyo meere, kubbadaha ku jira taangigana way shidaan oo isku daraan muunado dhaqdhaqaaq xawaare sare leh. Badeecadu waxay burburin kartaa oo isku dari kartaa alaabooyin kala duwan oo ka kooban agabyo kala duwan iyo granularity iyadoo la adeegsanayo habab qalalan ama qoyan. Budada ugu yar ee budada dhulka lagu shiido waxay noqon kartaa mid yar sida 0.1mm.
Feature / Faa'iidada

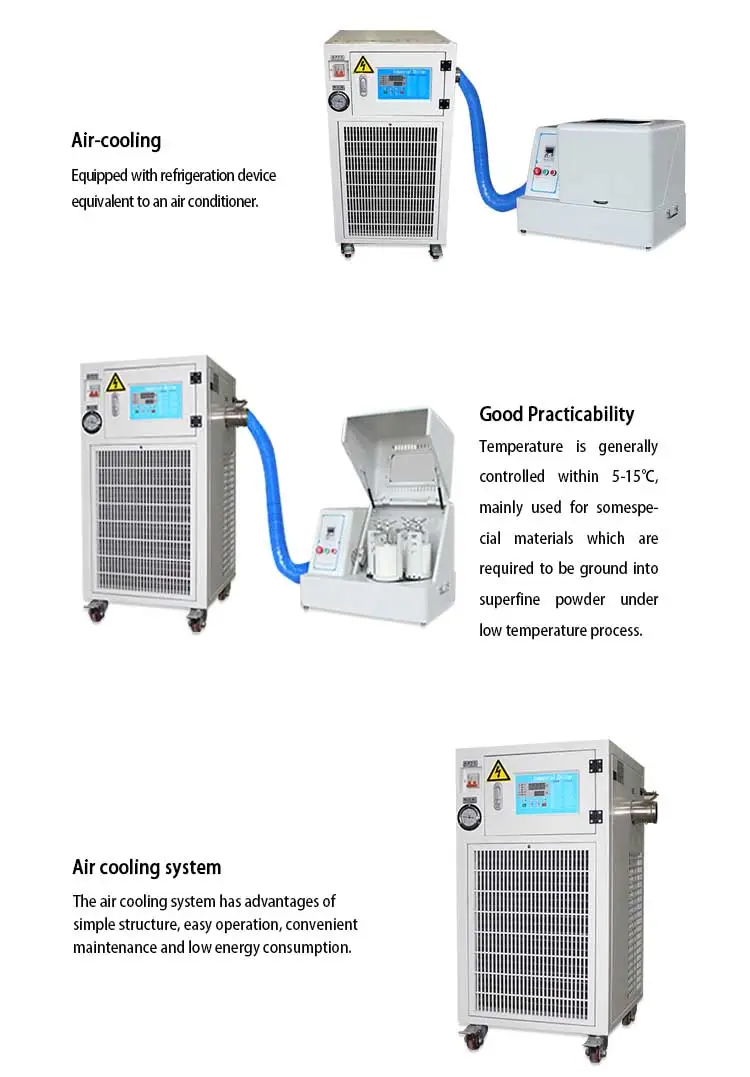

Mashiinka kubbadda meeraha ee Cryogenic (xakamaynta heerkulka hoose) waa isku-darka mashiinka meeraha iyo qalabka qaboojinta hawada. Mabda'a qaboojiyaha ee la cadaadiyay ee qaboojiyaha hawada ayaa lagu dabaqaa qalabka qaboojinta hawada. Kuleylka ka dhasha shiididda waxaa si dhakhso ah looga saari karaa wareegga gaaska qaboojinta hawada. Sida ku cad farqiga heerkulka deegaanka, heerkulka booska shiididda kubbadda waxaa lagu xakamayn karaa 5-15℃. Noocan mashiinka kubbadda waxaa inta badan loo isticmaalaa shiididda aadka u fiican iyadoo la raacayo shuruudaha agabka ee tignoolajiyada heerkulka hooseeya. Qalabka qaboojinta hawada wuxuu leeyahay faa'iidooyin qaab-dhismeed fudud, hawlgal ku habboon, dayactir ku habboon iyo isticmaalka tamarta oo hooseeya.
1. Ku habboon agabka u baahan shiidi aad u fiican heerkulka hooseeya.
2. Qaab dhismeedka fudud.
3. Hawlgal fudud.
4. Dayactir ku habboon.
5. Isticmaalka tamarta oo hooseeya.
Xaashida macluumaadka
Xaashida Xogta Farsamada ee Mill-ka Kubadda ee Tencan
| Drive Mode | Gawaarida gawaarida |
| Qaabka Howlgalka | Laba ama afar dhalo oo warshad lagu shiido ayaa loo isticmaali karaa shiidid kasta |
| Awoodda ugu Badan ee Agabka | Wax ka yar 1/3 mugga dhalada kasta Wadarta awoodda ugu badan: wax ka yar 1/3 mugga guud ee dhalooyinka |
| Cabbirka Quudinta | Maaddooyin jilicsan oo qallafsan ≤ 10mm Agab kale oo adag ≤ 3mm |
| Wax soo saarka granularity | Cabbirka ugu yar waxaa lagu gaari karaa 0.1μm |
| Saamiga Xawaaraha Wareegga | 1:02 |
| Waqtiga ugu badan ee Hawlgalka Joogtada ah | 72 Saacadaha |
| Qalabka Dhalooyinka Warshadda ee la heli karo | 304 Bir aan miridh lahayn, 316l bir aan miridh lahayn, Zirconia, Naylon, PU, Dhoobada Alumina (corundum), PTFE, Agate, carbide Tungsten |
Faallooyin: Mashiinka kubbadda ee meeraha ee Cryogenic waa isku-darka mashiinka kubbadda meeraha iyo qalabka qaboojinta hawada, kaas oo lagu qalabayn karo mashiinka kubbadda meeraha ee toosan, mashiinka kubbadda meeraha ee toosan, mashiinka kubbadda meeraha ee jihada buuxa.
Shaxda 1. Halbeegyada Farsamada ee Mashiinka Kubbadda ee Cryogenic Planetary
| Model No. | danab | Power | Xawaaraha wareegga | Sawaxanka |
| XQM-1(C) | 220V-50Hz | 0.75KW | 70-670 rpm | Wax kayar 60db |
| XQM-2(C) | 220V-50Hz | 0.75KW | 70-670 rpm | Wax kayar 60db |
| XQM-4(C) | 220V-50Hz | 0.75KW | 70-670 rpm | Wax kayar 60db |
| XQM-6(C) | 220V-50Hz | 0.75KW | 70-670 rpm | Wax kayar 60db |
| XQM-8(C) | 220V-50Hz | 1.5KW | 70-580 rpm | Wax kayar 60db |
| XQM-10(C) | 220V-50Hz | 1.5KW | 70-580 rpm | Wax kayar 60db |
| XQM-12(C) | 220V-50Hz | 1.5KW | 70-580 rpm | Wax kayar 60db |
| XQM-20(C) | 380V-50Hz | 4.0KW | 50-430 rpm | Wax kayar 65db |
| XQM-40(C) | 380V-50Hz | 5.5KW | 40-390 rpm | Wax kayar 68db |
| XQM-60(C) | 380V-50Hz | 7.5KW | 40-260 rpm | Wax kayar 68db |
| XQM-100(C) | 380V-50Hz | 11KW | 40-260 rpm | Wax kayar 68db |
Shaxda 2. Halbeegyada Farsamada ee Mashiinka Kubbadda ee Cryogenic Planetary
| Model No. | Xakamaynta Xawaaraha | Miisaanka Net | Cabirka Net |
| XQM-1(C) | Xakamaynta isdabajoogga | 93kgs | 750 * * 470 564mm |
| XQM-2(C) | Xakamaynta isdabajoogga | 93kgs | 750 * * 470 564mm |
| XQM-4(C) | Xakamaynta isdabajoogga | 93kgs | 750 * * 470 564mm |
| XQM-6(C) | Xakamaynta isdabajoogga | 93kgs | 750 * * 470 564mm |
| XQM-8(C) | Xakamaynta isdabajoogga | 150kgs | 900 * * 600 640mm |
| XQM-10(C) | Xakamaynta isdabajoogga | 150kgs | 900 * * 600 640mm |
| XQM-12(C) | Xakamaynta isdabajoogga | 150kgs | 900 * * 600 640mm |
| XQM-20(C) | Xakamaynta isdabajoogga | 330kgs | 1200 * * 750 920mm |
| XQM-40(C) | Xakamaynta isdabajoogga | 468kgs | 1400 * * 850 1160mm |
| XQM-60(C) | Xakamaynta isdabajoogga | 900kgs | 1600 * * 990 1250mm |
| XQM-100(C) | Xakamaynta isdabajoogga | 1250kgs | 1750 * * 1140 1330mm |
