Wax-soo-saarka Kicinta Ball Mill
Codsiyada Shaqaalaha Cusub
Waxaa si weyn loogu isticmaalaa meelaha ay ka mid yihiin zirconia silicate, zirconia, alumina oxide, dhoobada, kiimikada, qalabka elektarooniga ah, walxaha magnetic, sameynta warqadaha, rinjiyeynta, macdanta aan birta ahayn, agab cusub, dahaarka, garaafitka, kaalshiyamka kaarboonatka, daawada, iwm.
Video
Guudmarka
Mashiinka kubbadda la shiiday wuxuu inta badan ka kooban yahay weel leh qalab shiidid gudaha ah, qalab walaaq iyo aalado kale oo kaabayaal ah sida qalabka dib u warshadaynta, qalabka qaboojinta, qalabka waqtiga, kontoroolka hagaajinta xawaaraha, iwm. Faa'iidooyinka hufnaanta sare iyo cufnaanta wanaagsan waxay daboolaan shuruudaha tignoolajiyada ee hababka kala duwan. Mashiinka kubbadda la shiiday waa nooc ka mid ah qalabka ugu habboon ee loo isticmaalo in lagu burburiyo agab cusub iyo rinjiyeynta cilmi-baarista ee jaamacadaha, xarumaha cilmi-baarista iyo shirkadaha sababtoo ah sifooyinka dufcad yar, awood yar iyo qiimo jaban.
Working Mabda'a
Marka mashiinku uu ku wareego xawaare sare isagoo wata dhidibka ugu weyn isla markaana qalabka shiididdu si aan joogto ahayn u dhaqaaqo isla waqtigaas, walxaha shiididdu waa la burburin karaa, la shiidi karaa oo loo gooyn karaa budada granularity-ga yar. Cabbirka, qaabka iyo saamiga isku-dhafka ee qalabka shiididdu waxay saameyn kartaa natiijada shiididdu. Guud ahaan, inta uu qalabka shiididdu sii weynaanayo, ayaa budada shiididdu sii fiican tahay. Saamiga saxda ah ee qalabka shiididdu iyo hagaajinta saxda ah ee xawaaraha wareegga waxay heli karaan saameyn shiidid oo wanaagsan.
Feature / Faa'iidada
1. Heerka isticmaalka sare ee tamarta, keydinta tamarta
2. Granularity-gu waa la hagaajin karaa iyadoo la hagaajinayo waqtiga shiidida
3. Gariir yar, buuq yar
4. Qaab-dhismeed fudud, hawlgal fudud
5. Buuxi shuruudaha hababka kala duwan, hirgeli wax soo saar joogto ah ama kala go'an.
6. Dhalo leh jaakad, oo si fudud loo xakameyn karo heerkulka shiidi
7. Adeeg gaar ah ayaa la heli karaa. Shaqooyin gaar ah sida waqtiga, hagaajinta xawaaraha, dib u warshadaynta, xakamaynta heerkulka waa la dooran karaa oo la dalban karaa.
8. Noocyo kala duwan oo dhalooyin shiidid ah oo ku jira agab kala duwan ayaa diyaar u ah ikhtiyaarka macaamiisha sida birta aan miridhku lahayn, dhoobada corundum, polyurethane, zirconia iyo wixii la mid ah.

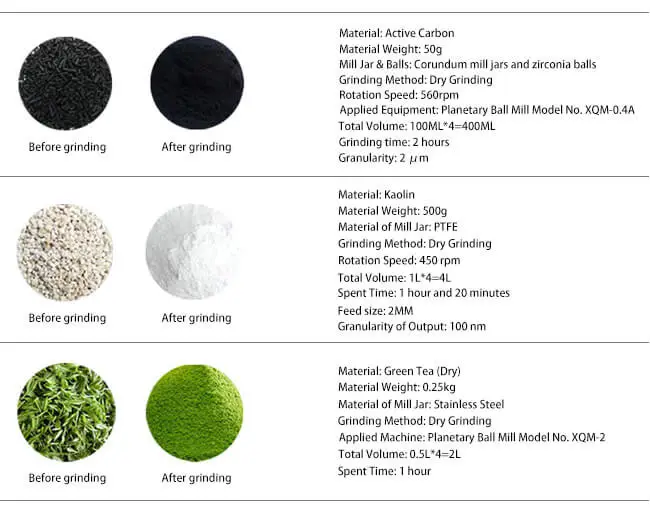

Kiisaska Codsiga ee Mashiinka Kubadda ee Planetary
Kiisaska Codsiga ee Mashiinka Kubadda ee Planetary
Xaashida macluumaadka
| Halbeegyada ugu Muhiimsan ee Mashiinka Kubadda La Karkariyey | |||||||||
| Model MAYA. | Isku rog Speed (Rpm) | mugga (L) | load Capacity (L) | Power Supply (KW/V) | Available Jarooyinka | Cabbirka Quudinta (Mm) | Output granularity (μm) | Habka Xakamaynta Xawaaraha | Qaybta |
| JM-1L | 50-1400 | 1 | 0.35 | 0.37KW/220V | ahama Steel nylon Alumina Ceramic PU Zirconia agate PTFE | ≤5 | ≤1μm | Frequency xawaaraha hagaajiyaha | Laboratory miisaanka |
| JM-2L | 50-1400 | 2 | 0.7 | 0.37KW/220V | ≤5 | ≤1μm | |||
| JM-3L | 50-1400 | 3 | 1.05 | 0.37KW/220V | ≤5 | ≤1μm | |||
| JM-5L | 60-600 | 5 | 1.75 | 0.75KW/220V | ≤5 | ≤1μm | Frequency hagaajiyaha xawaaraha or Xawaaraha go'an goob Iibsadaha doorasho | Nooca Yar | |
| JM-10L | 60-560 | 10 | 3.5 | 1.5KW/220V | ≤10 | ≤1μm | |||
| JM-15L | 60-380 | 15 | 5.25 | 2.2KW/380V | ≤10 | ≤1μm | |||
| JM-20L | 60-380 | 20 | 7 | 2.2KW/380V | ≤10 | ≤1μm | Nooca nalka | ||
| JM-30L | 60-310 | 30 | 10.5 | 3KW/380V | Carbon Steel ahama Steel Dahaarka nayloonka Dahaarka PU Dahaarka Dhoobada Alumina Dahaarka PTFE | ≤10 | ≤1μm | ||
| JM-50L | 60-140 | 50 | 17.5 | 4KW/380V | ≤10 | ≤1μm | |||
| JM-100L | 60-140 | 100 | 35 | 7.5KW/380V | ≤20 | ≤1μm | Industrial nooca | ||
| JM-200L | 60-140 | 200 | 70 | 11KW/380V | ≤20 | ≤1μm | |||
| JM-300L | 60-110 | 300 | 100 | 15KW/380V | ≤20 | ≤1μm | |||
| JM-500L | 60-90 | 500 | 170 | 18.5KW/380V | ≤20 | ≤1μm | |||
| JM-600L | 60-90 | 600 | 210 | 22KW/380V | ≤20 | ≤1μm | |||
Qalabka Mactchable
| Halbeegyada ugu Muhiimsan ee Mashiinka Kubadda La Karkariyey | |||||||||
| Model MAYA. | Isku rog Speed (Rpm) | mugga (L) | load Capacity (L) | Power Supply (KW/V) | Available Jarooyinka | Cabbirka Quudinta (Mm) | Output granularity (μm) | Habka Xakamaynta Xawaaraha | Qaybta |
| JM-1L | 50-1400 | 1 | 0.35 | 0.37KW/220V | ahama Steel nylon Alumina Ceramic PU Zirconia agate PTFE | ≤5 | ≤1μm | Frequency xawaaraha hagaajiyaha | Laboratory miisaanka |
| JM-2L | 50-1400 | 2 | 0.7 | 0.37KW/220V | ≤5 | ≤1μm | |||
| JM-3L | 50-1400 | 3 | 1.05 | 0.37KW/220V | ≤5 | ≤1μm | |||
| JM-5L | 60-600 | 5 | 1.75 | 0.75KW/220V | ≤5 | ≤1μm | Frequency hagaajiyaha xawaaraha or Xawaaraha go'an goob Iibsadaha doorasho | Nooca Yar | |
| JM-10L | 60-560 | 10 | 3.5 | 1.5KW/220V | ≤10 | ≤1μm | |||
| JM-15L | 60-380 | 15 | 5.25 | 2.2KW/380V | ≤10 | ≤1μm | |||
| JM-20L | 60-380 | 20 | 7 | 2.2KW/380V | ≤10 | ≤1μm | Nooca nalka | ||
| JM-30L | 60-310 | 30 | 10.5 | 3KW/380V | Carbon Steel ahama Steel Dahaarka nayloonka Dahaarka PU Dahaarka Dhoobada Alumina Dahaarka PTFE | ≤10 | ≤1μm | ||
| JM-50L | 60-140 | 50 | 17.5 | 4KW/380V | ≤10 | ≤1μm | |||
| JM-100L | 60-140 | 100 | 35 | 7.5KW/380V | ≤20 | ≤1μm | Industrial nooca | ||
| JM-200L | 60-140 | 200 | 70 | 11KW/380V | ≤20 | ≤1μm | |||
| JM-300L | 60-110 | 300 | 100 | 15KW/380V | ≤20 | ≤1μm | |||
| JM-500L | 60-90 | 500 | 170 | 18.5KW/380V | ≤20 | ≤1μm | |||
| JM-600L | 60-90 | 600 | 210 | 22KW/380V | ≤20 | ≤1μm | |||
